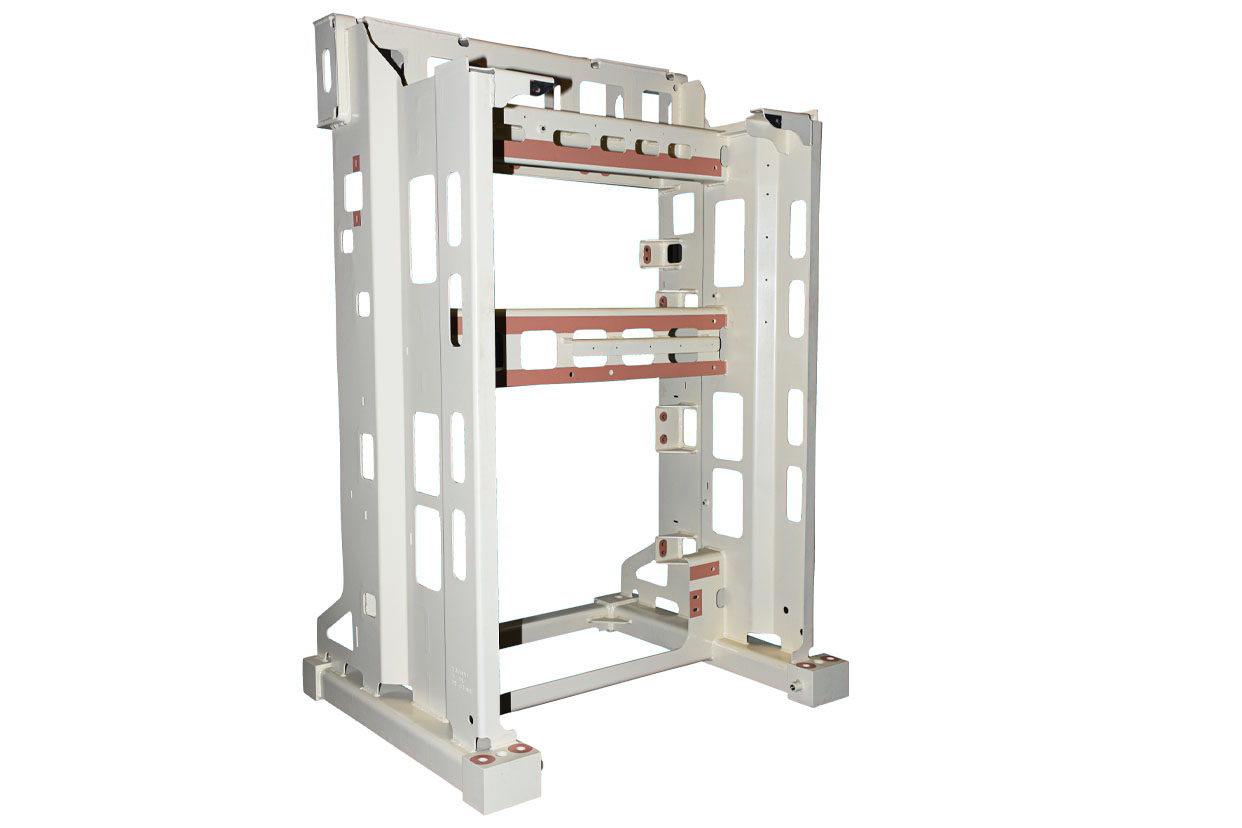

Fabricated Frames
Fabricated frames are engineered structural assemblies, custom made using welded steel / aluminium / stainless components to provide rigid support, alignment, and protection for industrial equipment, machines, panels or modules. At Fabrimech, we design and manufacture fabricated frames that meet stringent quality, durability and precision standards for various industries.
Product Specifications
| Specification | Details |
|---|---|
| Material Options | Mild Steel, Carbon Steel, Stainless Steel, Aluminium alloys |
| Structural Profiles | Hollow sections (square, round, rectangular), I-beams, channels, angle sections |
| Surface Finishes | Powder coating, epoxy paint, galvanizing, stainless polish, anti-corrosive coatings |
| Welding Standards | MIG / TIG / Arc welding; conforming to ISO 3834, EN 15085-2 (if applicable) |
| Fabrication Tolerances | ±0.5 mm to ±1 mm (depending on size and complexity) |
| Maximum Dimensions | Frames up to [specify max height, width, depth] |
| Load Capacity | Designed to withstand loads up to [specify tonnage or kg] |
| Accessories / Add-ons | Mounting brackets, gussets, stiffeners, cable trays, base plates, anti-vibration pads |
INTERESTED IN OUR PRODUCT?
Key Features
- Custom Design & Flexibility:Tailor-made frames to exact customer drawings or engineered in-house per requirement.
- High Precision Manufacturing:Using CNC cutting, bending, laser profiling to ensure accurate dimensions and fit.
- Robust Welding & Jointing:Strong welds, quality joints that provide structural integrity and long life.
- Corrosion Resistance & Finish Options:Surface treatments to resist environmental factors, moisture and wear.
- Modular & Scalable:Frames designed to allow expansion, assembly/disassembly, easy mounting of components.
- Compliance & Certifications:Fabrication per relevant standards (welding, materials, structural safety).
Applications
Electrical Panels & Switchgear Mounting
Ensure safe installation and long-lasting support for electrical systems.
Automation & Robotics Bases
Offer stable platforms for robotic arms and automated equipment.
Structural Supports for Piping & HVAC Systems
Maintain durability and alignment for piping networks and air-handling units.
Industrial Machinery Supports
Provide sturdy foundations and protection for heavy machinery.
Additional Features
- Integrated lift & handling points for installation
- Provisions for cable routing, cable trays or conduits
- Removable panels or access doors for maintenance
- Adjustable feet or leveling pads for uneven surfaces
- Design for ease of transportation (break-down or nested parts)
Advantages
- Strength & Durability – Built to withstand heavy loads, shocks, vibration and environmental conditions.
- Customization – Meet exact dimension, load, aesthetic, and functional requirements.
- Improved Safety & Compliance – Certified welds, quality craft prevent failures.
- Cost Efficiency – Optimised material usage, fabrication, less rework.
- Aesthetic Appeal & Finish – Neat finishes improve product/service appearance.
- Reduced Lead Time – Efficient production processes enable timely delivery.
